Sonodyne Roarr 1312D Powered Subwoofer

Description

Sonodyne introduces the Roarr 1312, the most powerful subwoofer in the Roarr series, designed to deliver deep, room-shaking bass with high precision and control for premium home theatre and music systems.

Built with a heavy-duty 12-inch driver and a high-power internal amplifier, the Roarr 1312 is engineered for large rooms and demanding setups where impactful low-frequency performance is essential.

This is not just a subwoofer — it is a high-performance bass engine built for cinematic and audiophile-grade systems.

---

Key Features

• Front-firing powered subwoofer
• 12-inch high-excursion driver
• 300W Class D built-in amplifier
• Rear-ported (vented) enclosure
• Adjustable crossover and phase control
• High SPL output for large rooms

---

Amplification and Power Output

Amplifier Power:

• 300 Watts (Class D)

Amplifier Distortion:

• 0.1% THD at rated power

Maximum Output:

• Up to 116 dB SPL

Delivers:

• Massive bass output
• Strong room-filling performance
• Deep cinematic impact

---

Driver and Acoustic Design

Driver:

• 1 × 12-inch high-excursion woofer

Enclosure Type:

• Front-firing, rear-ported

Design Focus:

• Higher air displacement
• Better low-frequency extension
• Reduced distortion at high volumes

---

Performance Specifications

Frequency Response:

• 25 Hz (-3 dB)

Frequency Extension:

• Up to 24 Hz (-10 dB)

Low Pass Filter:

• 50 Hz – 150 Hz adjustable

👉 This means:

• Much deeper bass than 1108 & 1210
• Suitable for true home theatre LFE effects

---

Controls and Tuning

Level Control
Adjust bass output based on room size

Crossover Control
Match perfectly with your main speakers

Phase Control:

• 0° / 180° switch

Ensures smooth integration and tight bass response.

---

Connectivity

Inputs:

• RCA (Left / Right / LFE)

Input Sensitivity:

• Approx. 150–250 mV

Compatible with:

• AV receivers
• Stereo amplifiers
• Preamp systems

---

Design and Build

Cabinet:

• MDF construction with reinforced structure

Finish Options:

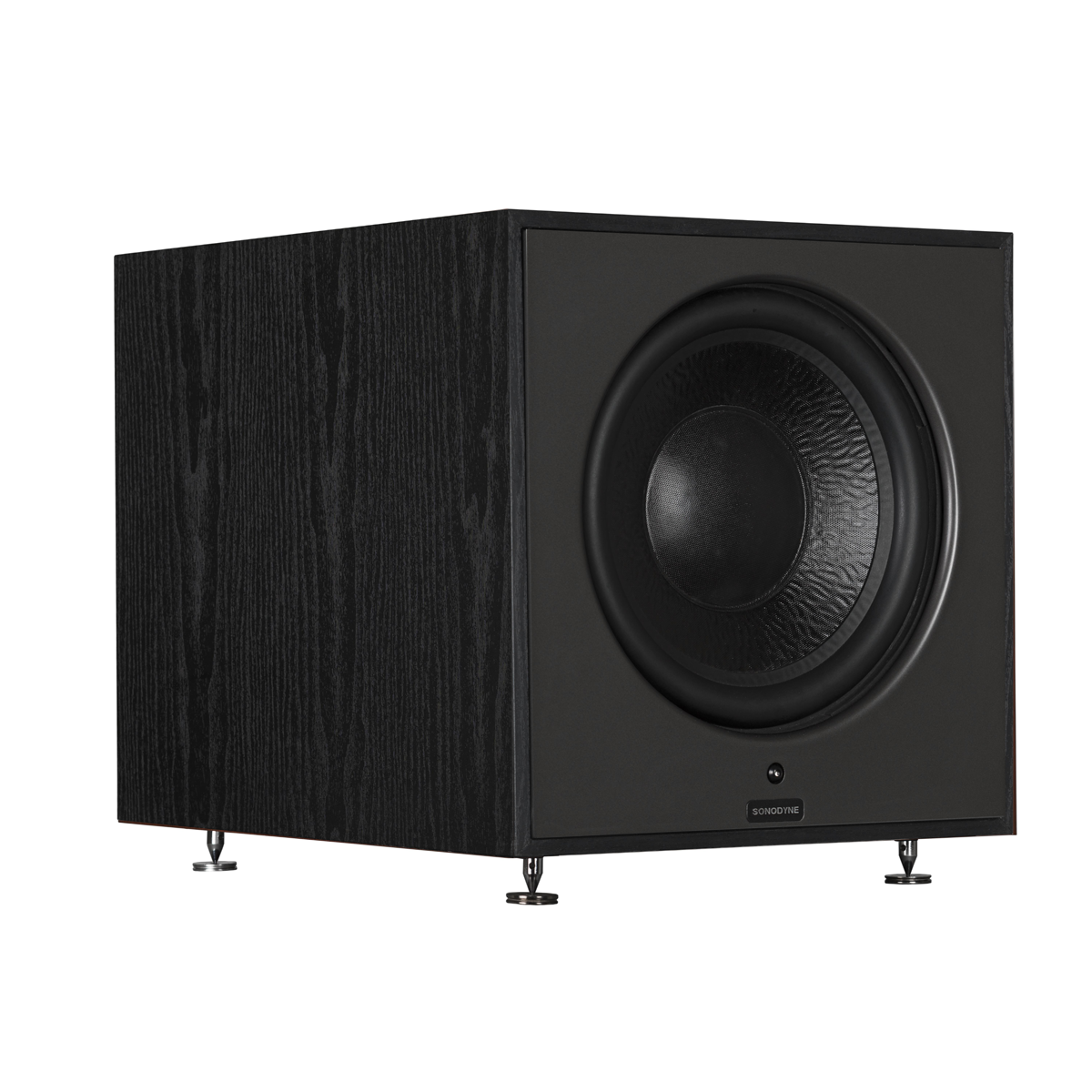

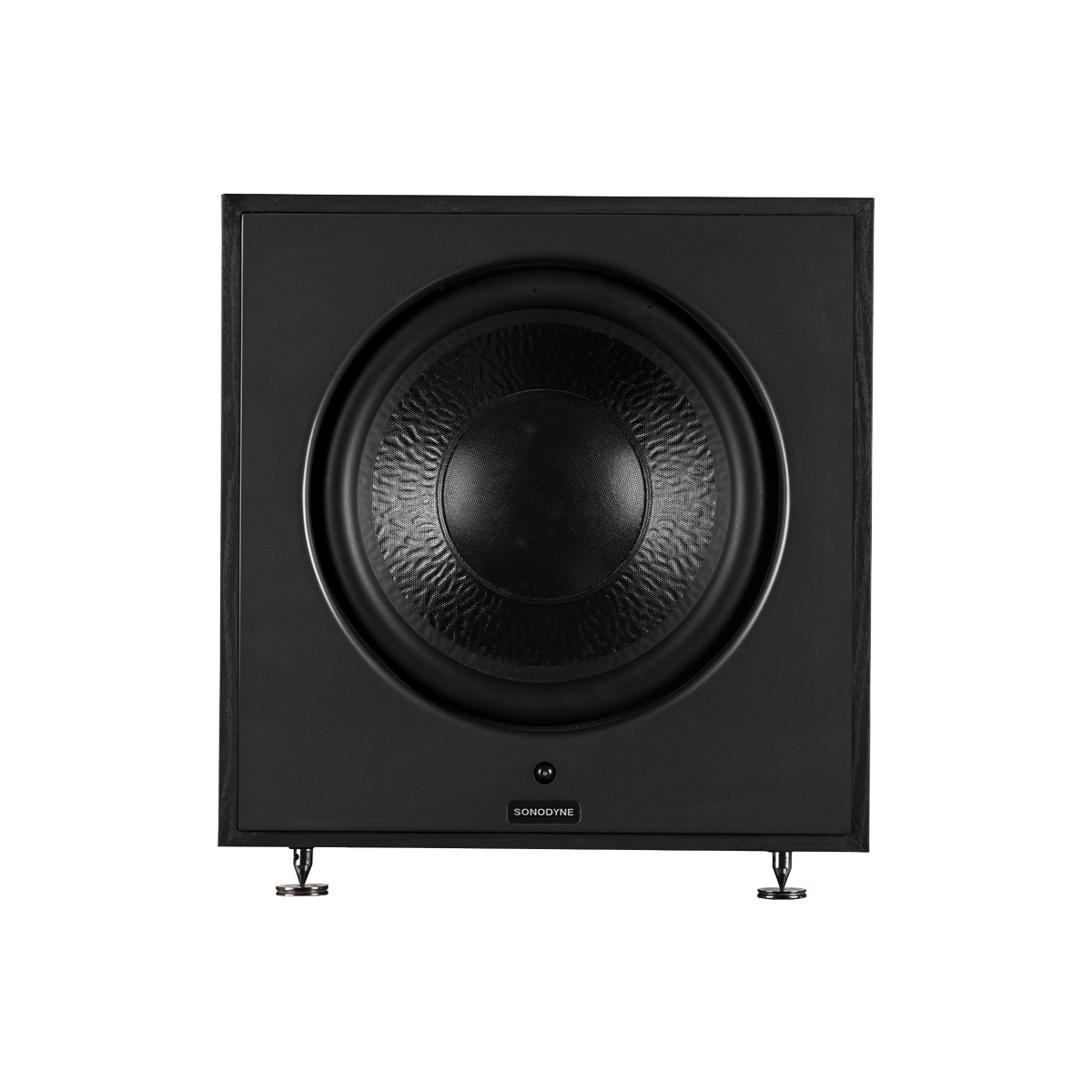

• Black Ash

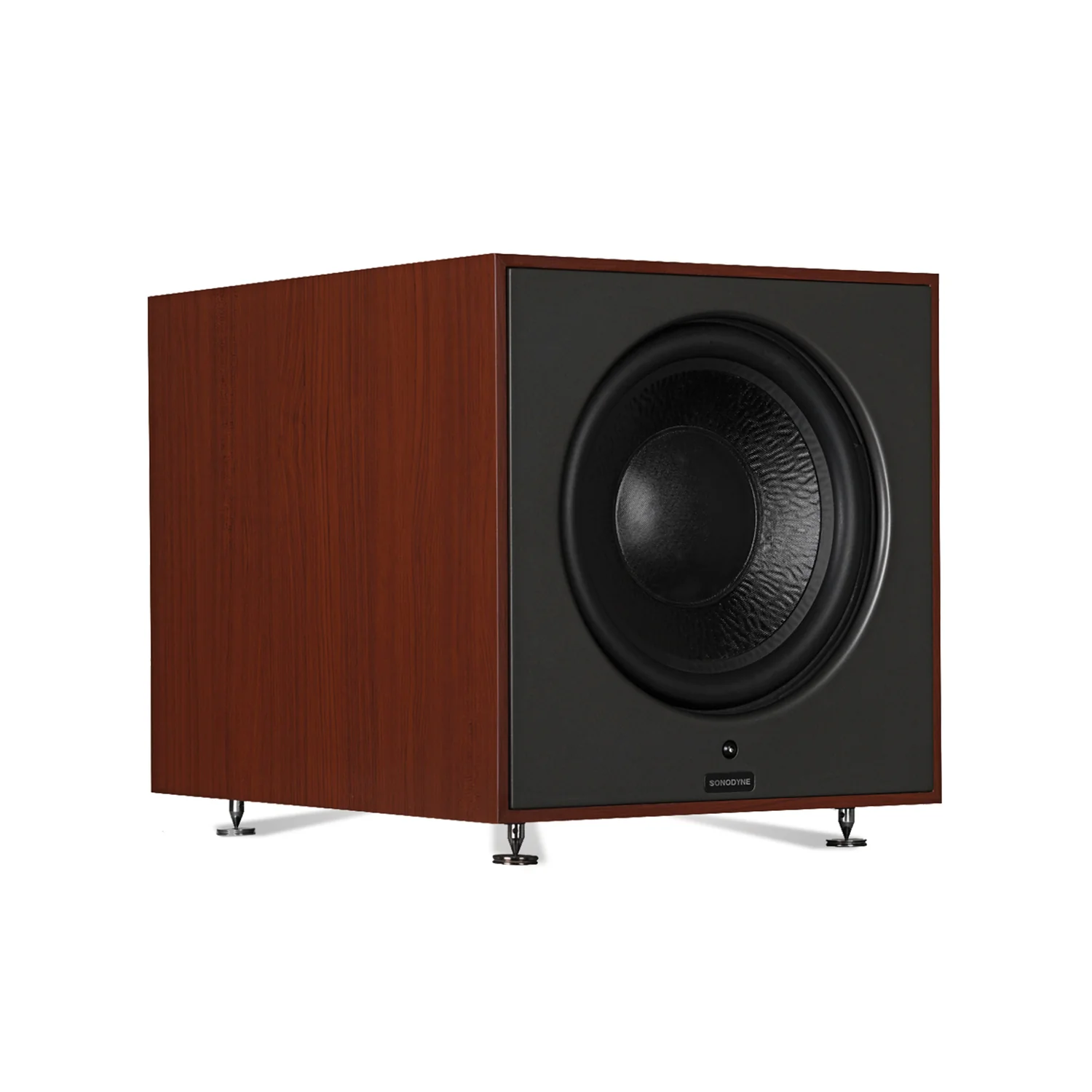

• Rosewood

Dimensions (H × W × D):

• 390 × 390 × 514 mm

Weight:

• 22–29 kg class

Built for:

• Low vibration
• High stability
• Long-term durability

---

Applications

Ideal for:

• Large home theatre rooms
• 5.1 / 7.1 / Dolby Atmos systems
• High-end stereo setups needing deep bass
• Movie-heavy systems with strong LFE demand

---

Sound Character

Very deep and powerful bass (down to ~24 Hz)
High output with excellent room coverage
Punchy yet controlled low frequencies
Strong cinematic impact with good musical balance

---

Why Choose Sonodyne Roarr 1312

Most powerful model in Roarr series (300W)
12-inch driver for deeper bass extension
Best suited for medium to large rooms
High SPL (116 dB) for theatre-level performance
Clear upgrade over 1108 and 1210

---

Conclusion

The Sonodyne Roarr 1312 is a true flagship subwoofer in its category, delivering deep, powerful, and controlled bass for serious home theatre and audio enthusiasts.

If you want cinematic bass with real impact, this is the model to go for in the Roarr lineup.
