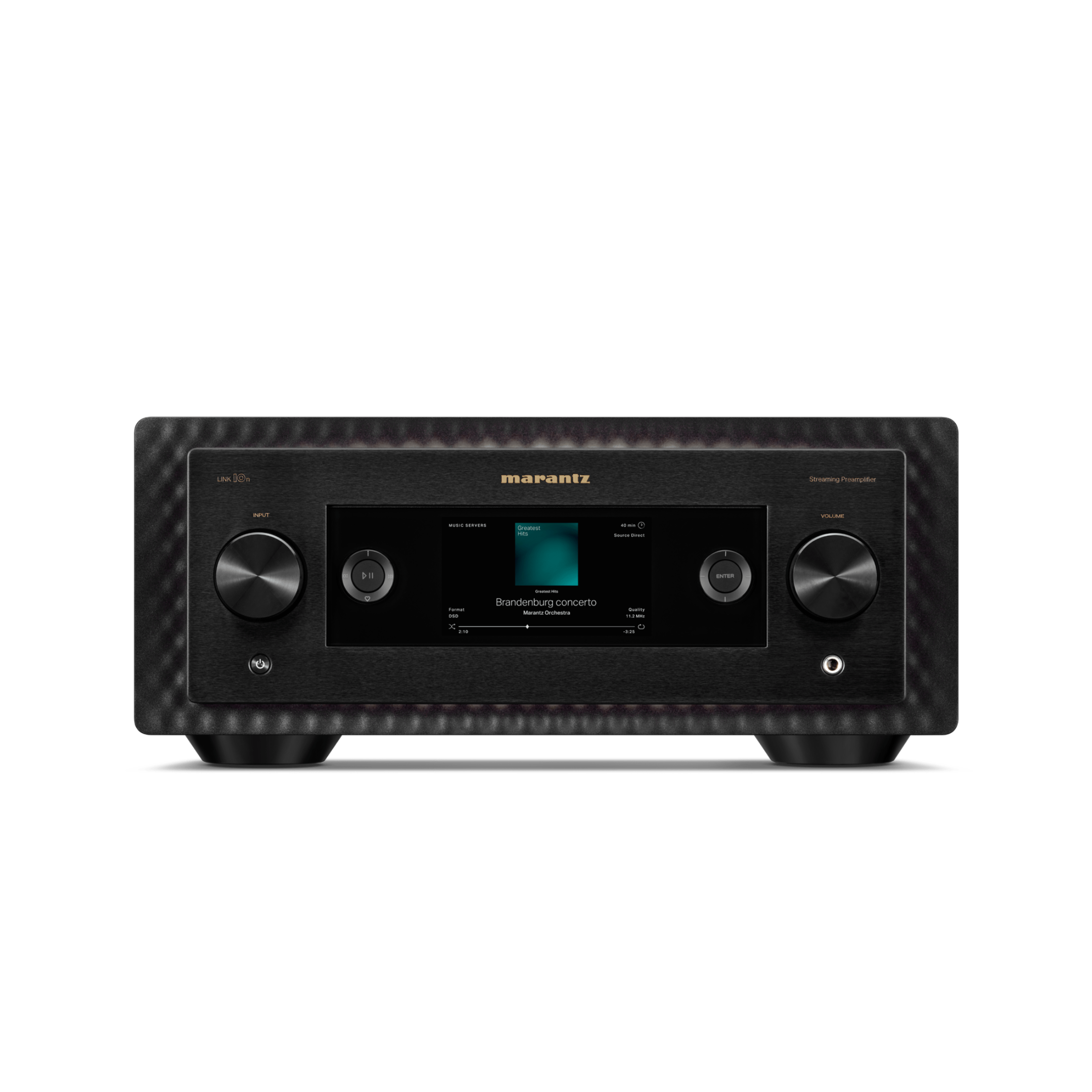

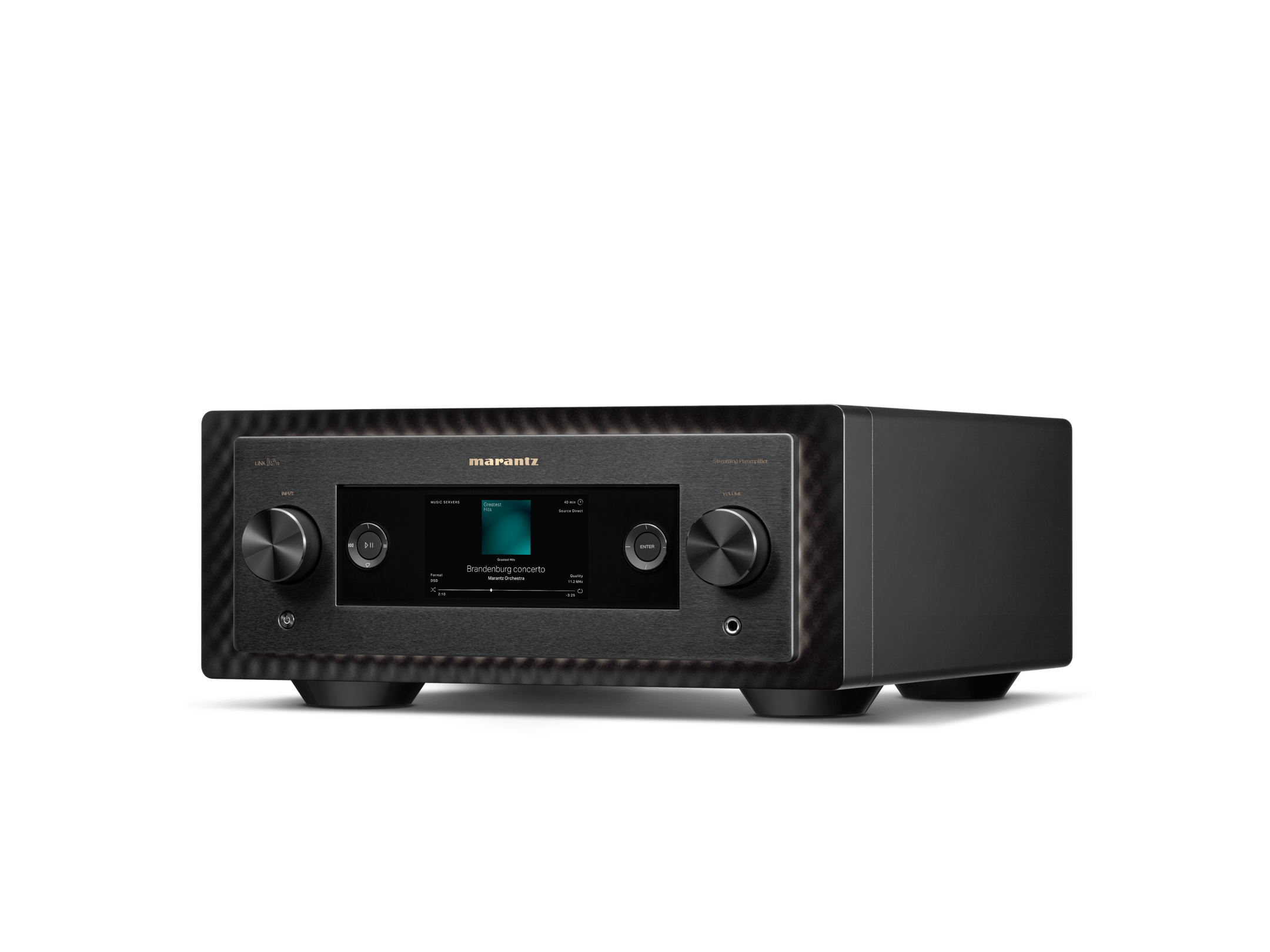

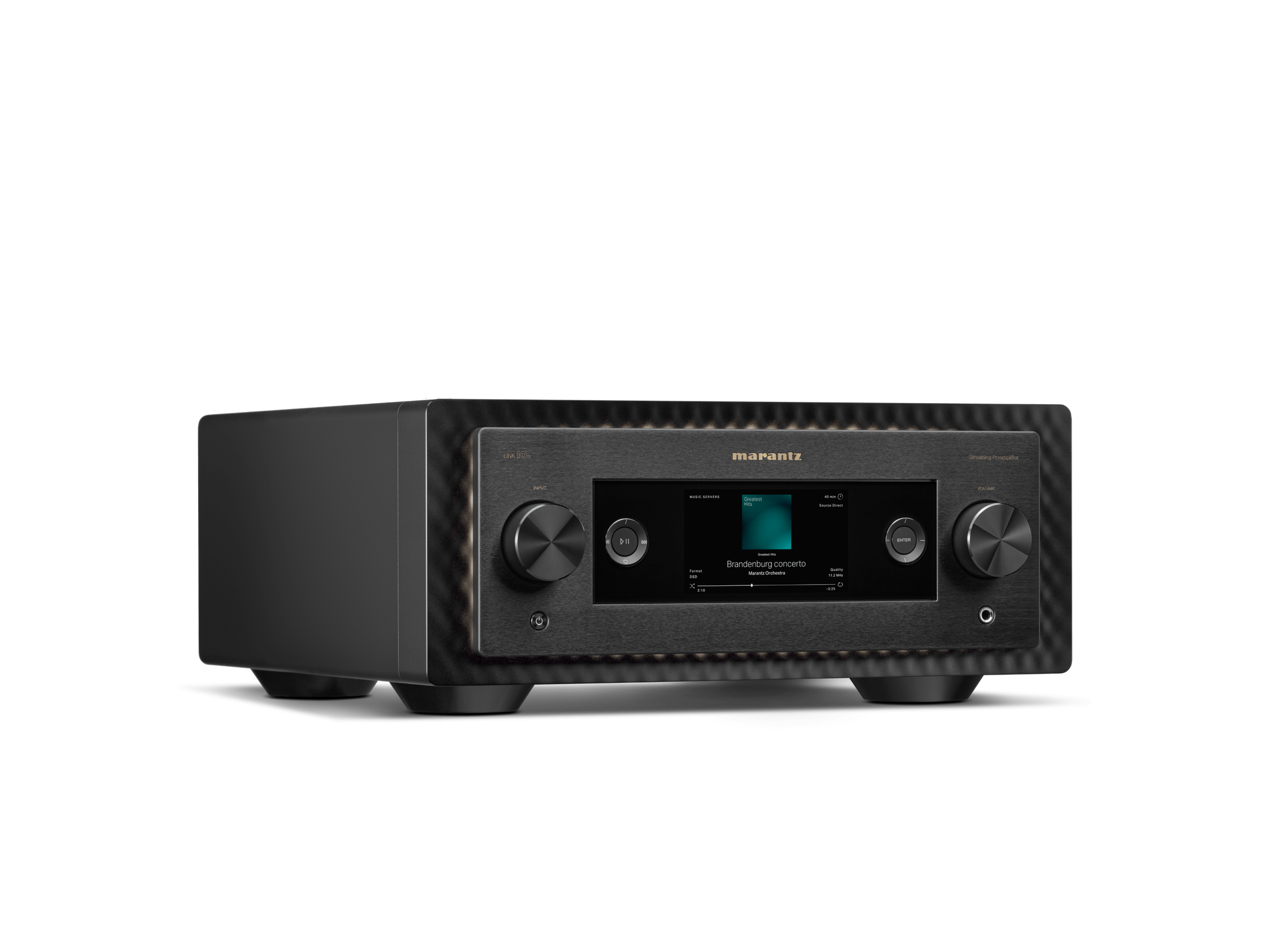

Marantz LINK 10n Reference Network Audio Player / Streaming Preamplifier

Description

Marantz introduces the LINK 10n, a flagship reference streaming preamplifier and network audio player, designed to deliver uncompromising performance, flexibility, and musical precision for high-end audiophile systems.

Part of the Marantz 10 Series, the LINK 10n integrates advanced streaming, high-end digital processing, and precision preamplification into a single reference component.

Built with Marantz Musical Mastering (MMM) and fully balanced analog stages, it delivers exceptional clarity, natural warmth, and an immersive listening experience.

This is not just a streamer — it is the control center of a reference Hi-Fi system.

---

Key Features

• Reference streaming preamplifier with built-in DAC
• HEOS multi-room streaming platform
• Marantz Musical Mastering (MMM) conversion
• HDAM-SA3 discrete analog circuitry
• Fully balanced signal architecture
• HDMI ARC for TV integration
• Subwoofer output (2.1 channel support)
• Premium copper-plated chassis construction

---

Streaming and Digital Support

Streaming Services:

• Spotify
• TIDAL
• Amazon Music
• Internet Radio

Wireless Technologies:

• AirPlay 2
• Bluetooth
• Wi-Fi and Ethernet

Voice Control:

• Alexa
• Google Assistant

---

Audio Format Support

High-Resolution Playback:

• DSD up to DSD256 (11.2 MHz)
• PCM up to 384kHz / 32-bit

Multi-room Audio:

• HEOS ecosystem support

Functions as a high-end streamer, DAC, and preamplifier.

---

Core Technologies

Marantz Musical Mastering (MMM)
Converts all digital signals into DSD, providing smoother and more natural sound reproduction.

HDAM (Hyper Dynamic Amplifier Modules)
Discrete analog circuitry designed to enhance speed, detail, and musical accuracy.

Fully Balanced Design
Ensures low noise, improved channel separation, and clean signal transmission.

Result: Extremely clean, detailed, and natural sound.

---

Performance Specifications

Frequency Response: 5Hz – 100kHz
Signal-to-Noise Ratio: up to 122 dB
Total Harmonic Distortion: approximately 0.001%

Output Level:

• RCA: ~1.6V
• XLR: ~3.2V

---

Audio Output Clarification

The LINK 10n is a preamplifier and source component, not a power amplifier.

• No wattage output (does not drive speakers directly)
• Provides line-level output to a power amplifier

👉 Final sound power depends on the connected amplifier (such as Model 10 or AMP 10)

---

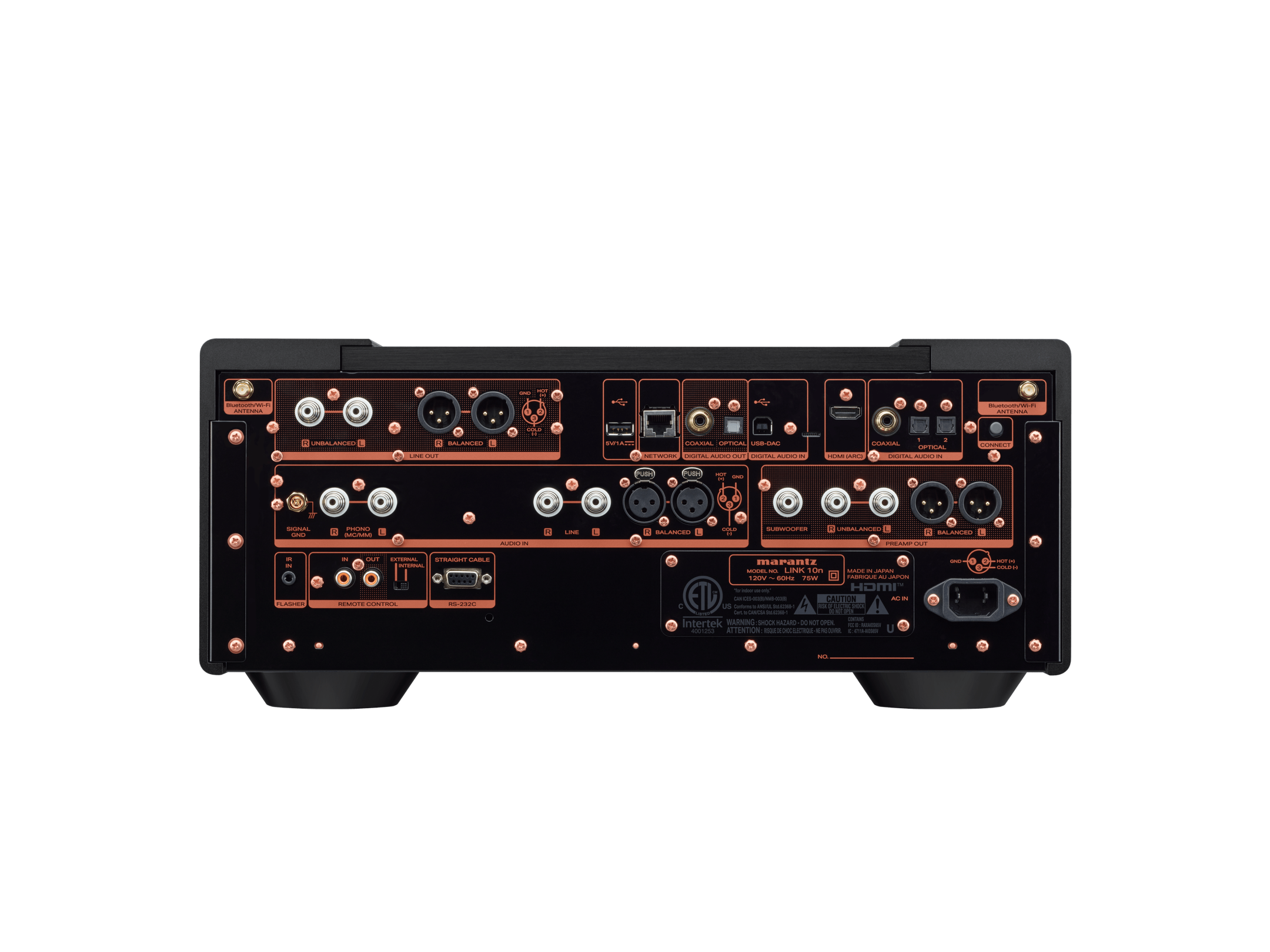

Connectivity

Analog Inputs:

• RCA (Line-level)
• Balanced XLR
• Phono (MM and MC)

Digital Inputs:

• USB-B (PC/Mac DAC)
• USB-A (storage playback)
• Optical and Coaxial
• HDMI ARC

Outputs:

• Balanced XLR
• RCA Pre-out
• Subwoofer output
• Headphone output

Acts as a central hub for all digital and analog sources.

---

Design and Build

Triple-layer copper-plated chassis
Thick aluminum panels for vibration control
Toroidal transformer power supply
Separated analog and digital sections

Dimensions (W x H x D):
440 × 192 × 442 mm

Weight:
Approximately 33 kg

Built for maximum stability, reduced interference, and long-term durability.

---

Applications

Ideal for high-end 2-channel audiophile systems
Reference stereo setups
Premium streaming environments
Integration with high-power amplifiers

---

Sound Character

Neutral with a slight warmth typical of Marantz tuning
Wide and holographic soundstage
Rich and detailed midrange
Smooth high frequencies with controlled bass

---

Why Choose Marantz LINK 10n

Combines streamer, DAC, and preamplifier in one unit
Eliminates need for multiple components
Fully balanced reference-grade design
Exceptional build quality
Seamless integration of digital and analog sources

---

Conclusion

The Marantz LINK 10n is a statement-level control component designed for those who demand the highest level of streaming performance and musical accuracy.

If you are building a no-compromise Hi-Fi system, this is the component that defines the entire chain.
